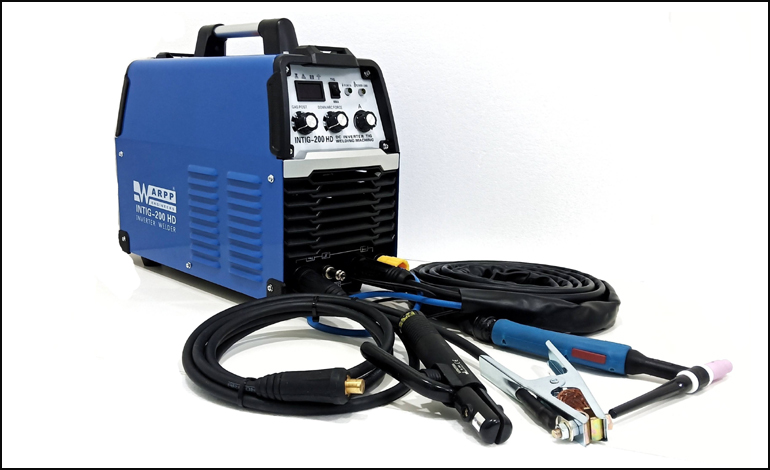

Inverter Based MMA/TIG Welding Machine

INTIG 200 HD is Single Phase IGBT Inverter Based MMA/TIG Welding machine which can be used for Manual Metal Arc (MMA) Welding and Gas Tungsten Arc Welding (GTAW) in various kind of metals except AI & Mg.

FEATURES

• IGBT based inverter and hence more reliable
• Built in High Frequency for GTAW (TIG)
• Digital Display for set welding current
• Compact & Light in weight
• Better Welding Performance
• Higher Efficiency and better power factor
• Adjustable post gas time & down slope time in TIG.
• Adjustable arc force in MMA.

Basic Outfits :

• Power Source : INTIG 200 HD
• 1.8 Meters of Welding cable witn welding holder
• 1.8 meters of Earthing cable wiith Earth Clamp
• 4 Meters Long Gas Cooled Tig Torch.

Model No.	INTIG 200 HD
Input Supply	230 * 15% 50/60 hz (Single Phase)
Input Capacity	7.5 KVA
Open Circuit Voltage	75-85 Volts
Welding Current Range (A)	MMA: 5 - 200 TIG: 5- 200
Rated Duty Cycle	60 % (40 Degree C & 10 Min Standard)
Dimensions L X W X H(mm)	460 x 210 x 390
Efficiency (%)	85
Power factor	0.9
Weight (KG)	14 Kg
Post Flow Time	1-7 Sec
Down Slope Time	0-2 Sec
